Light duty and furniture caster wheel
The caster wheel is an important part of furniture, as it allows the piece to be moved around easily. Without a caster wheel, furniture would be much more difficult to move and could potentially damage flooring. Caster wheels come in a variety of sizes and materials, so it is important to choose the right one for your furniture. For example, if you have a heavier piece of furniture, you will need a stronger caster wheel that can support the weight. Different materials will also affect the durability and stability of the caster wheel. For example, plastic wheels may not be as durable as metal ones. Ultimately, choosing the right furniture caster wheel will depend on a variety of factors including the weight and material of your furniture.

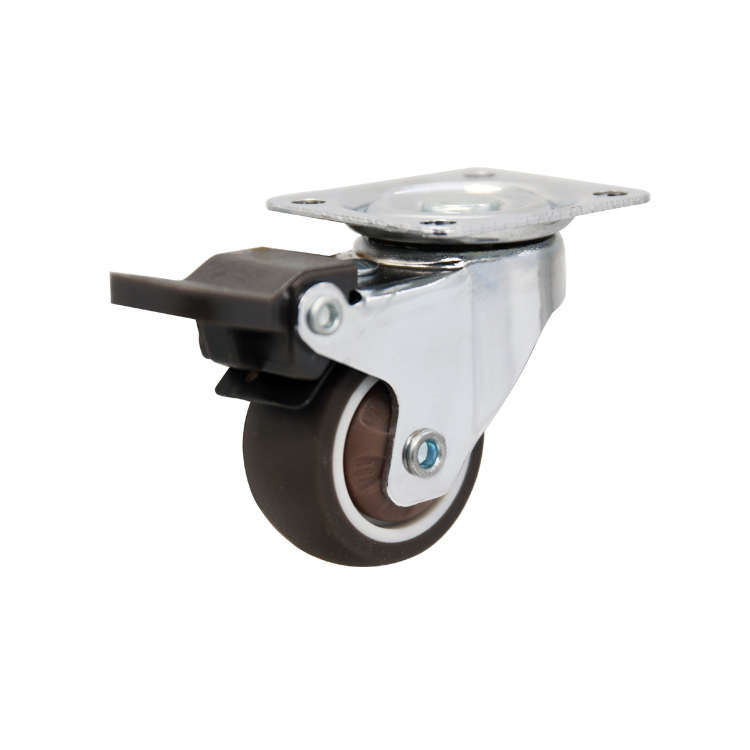

 201 series Light duty and furniture caster wheel » 232 |
| Description |
| Material : Hight tech TPR material with single ball bearing - Chrome finishing |
| Swivel section : Precision steel ball with double track design |
Installation : fix , plate , thread steam , hollow steam |
| Model | Wheel Material | Wheel Dia | Tread Width | Load Height | Plate Size | Plate Size | Hole Size | Load Capacity |
| 201CH－010－25－232－1B | TPR | 25（1"） | 12 | 37 | 38*30 | 29*21 | 4.2 | 15 |
| 201CH－010－32－232－1B | TPR | 32(1¼) | 12 | 44 | 39*33 | 30*24 | 4.2 | 20 |
| 201CH－010－38－232－1B | TPR | 38(1½) | 16 | 52 | 46*39 | 36*28 | 5.2 | 25 |
| 201CH－010－50－232－1B | TPR | 50(2") | 20 | 77 | 60*49 | 46*35 | 6.5 | 35 |
| 201CH－010－63－232－1B | TPR | 63(2½) | 20 | 90 | 70*52 | 53*37 | 6.5 | 40 |
| 201CH－010－75－232－1B | TPR | 75(3") | 25 | 104 | 73*60 | 53－55*35－42 | 8.5 | 72 |
| Model | Wheel Material | Wheel Dia | Tread Width | Load Height | Plate Size | Plate Size | Hole Size | Load Capacity |
| 201CH－020－25－232－1B | TPR | 25（1"） | 12 | 37 | 38*30 | 29*21 | 4.2 | 15 |
| 201CH－020－32－232－1B | TPR | 32(1¼) | 12 | 44 | 39*33 | 30*24 | 4.2 | 20 |
| 201CH－020－38－232－1B | TPR | 38(1½) | 16 | 52 | 46*39 | 36*28 | 5.2 | 25 |
| 201CH－020－50－232－1B | TPR | 50(2") | 20 | 77 | 60*49 | 46*35 | 6.5 | 35 |
| 201CH－020－63－232－1B | TPR | 63(2½) | 20 | 90 | 70*52 | 53*37 | 6.5 | 40 |
| 201CH－020－75－232－1B | TPR | 75(3") | 25 | 104 | 73*60 | 53－55*35－42 | 8.5 | 72 |
| Model | Wheel Material | Wheel Dia | Tread Width | Load Height | Plate Size | Plate Size | Hole Size | Load Capacity |
| 201CH－025－254－232－1B | TPR | 25（1"） | 12 | 37 | 38*30 | 29*21 | 4.2 | 15 |
| 201CH－025－324－232－1B | TPR | 32(1¼) | 12 | 44 | 39*33 | 30*24 | 4.2 | 20 |
| 201CH－025－384－232－1B | TPR | 38(1½) | 16 | 52 | 46*39 | 36*28 | 5.2 | 25 |
| 201CH－025－505－232－1B | TPR | 50(2") | 20 | 77 | 60*49 | 46*35 | 6.5 | 35 |
| 201CH－025－635－232－1B | TPR | 63(2½) | 20 | 90 | 70*52 | 53*37 | 6.5 | 40 |
| 201CH－025－755－232－1B | TPR | 75(3") | 25 | 104 | 73*60 | 53－55*35－42 | 8.5 | 72 |
