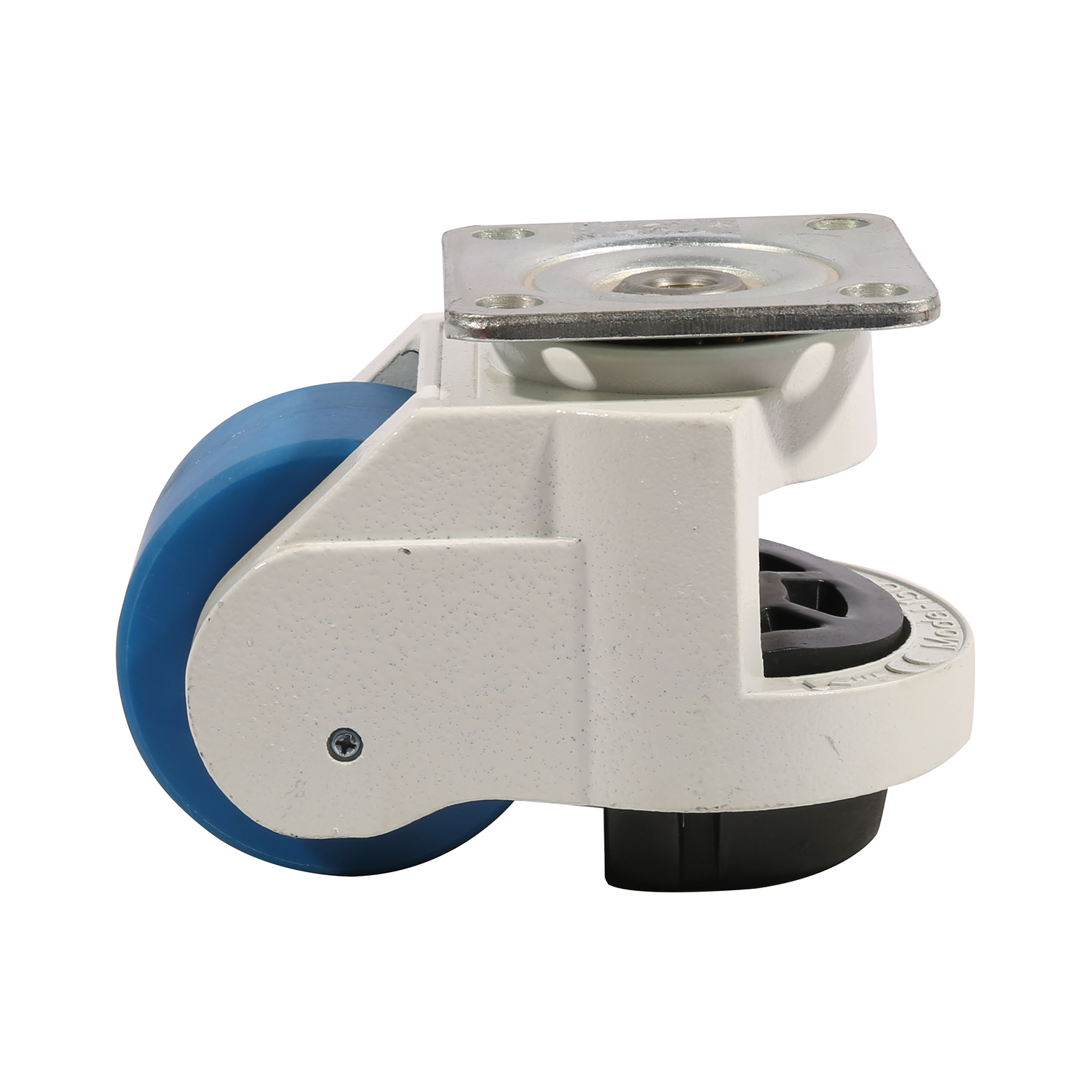

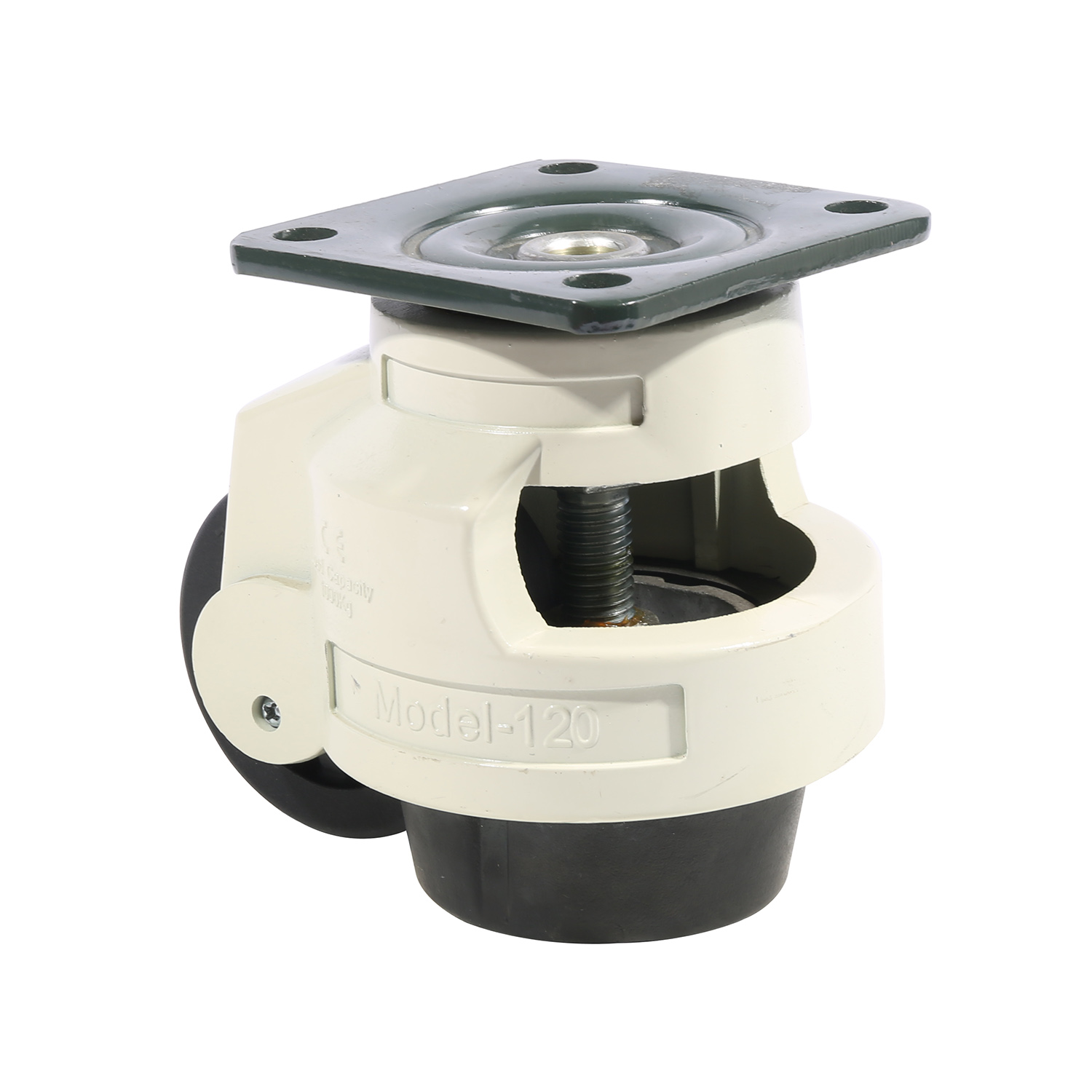

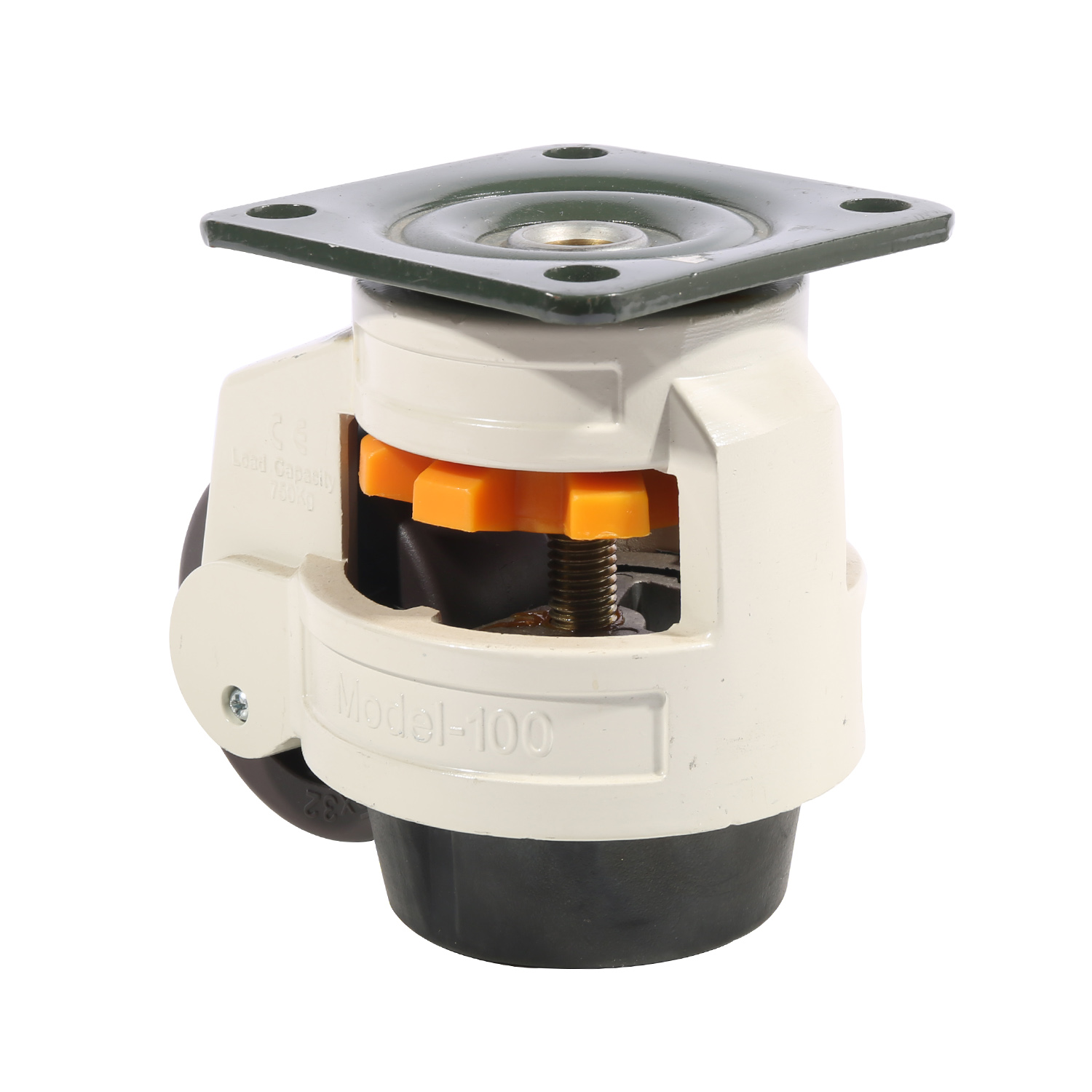

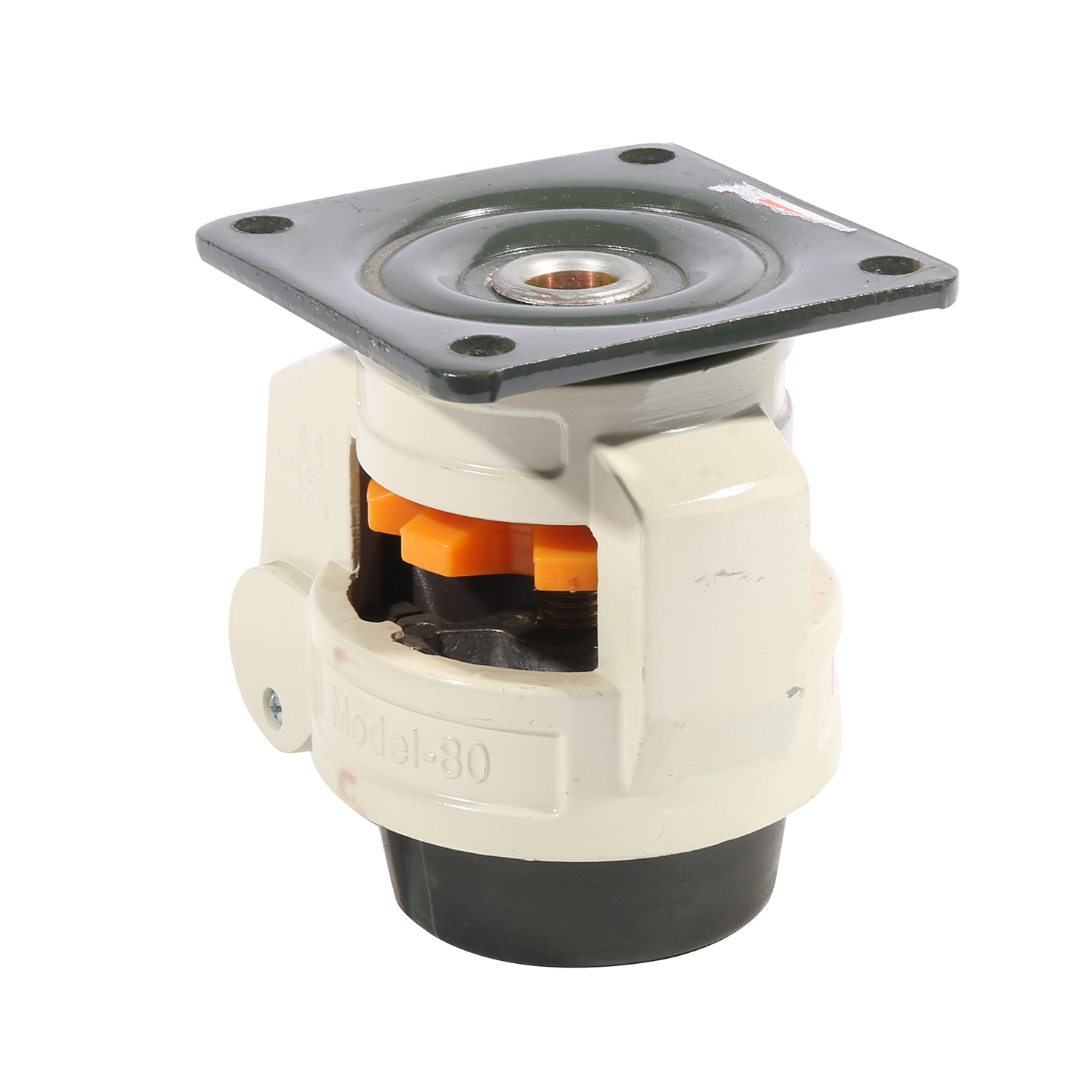

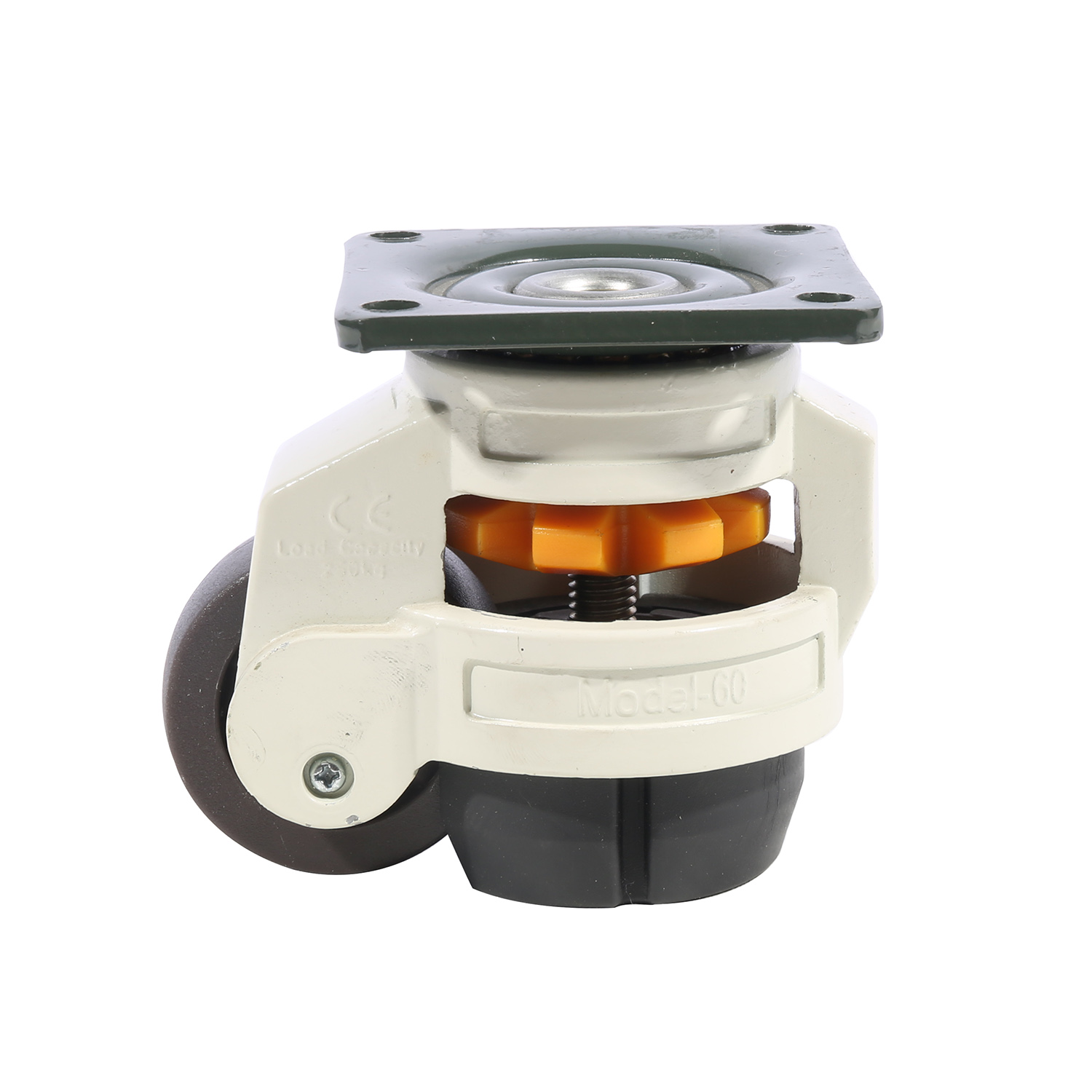

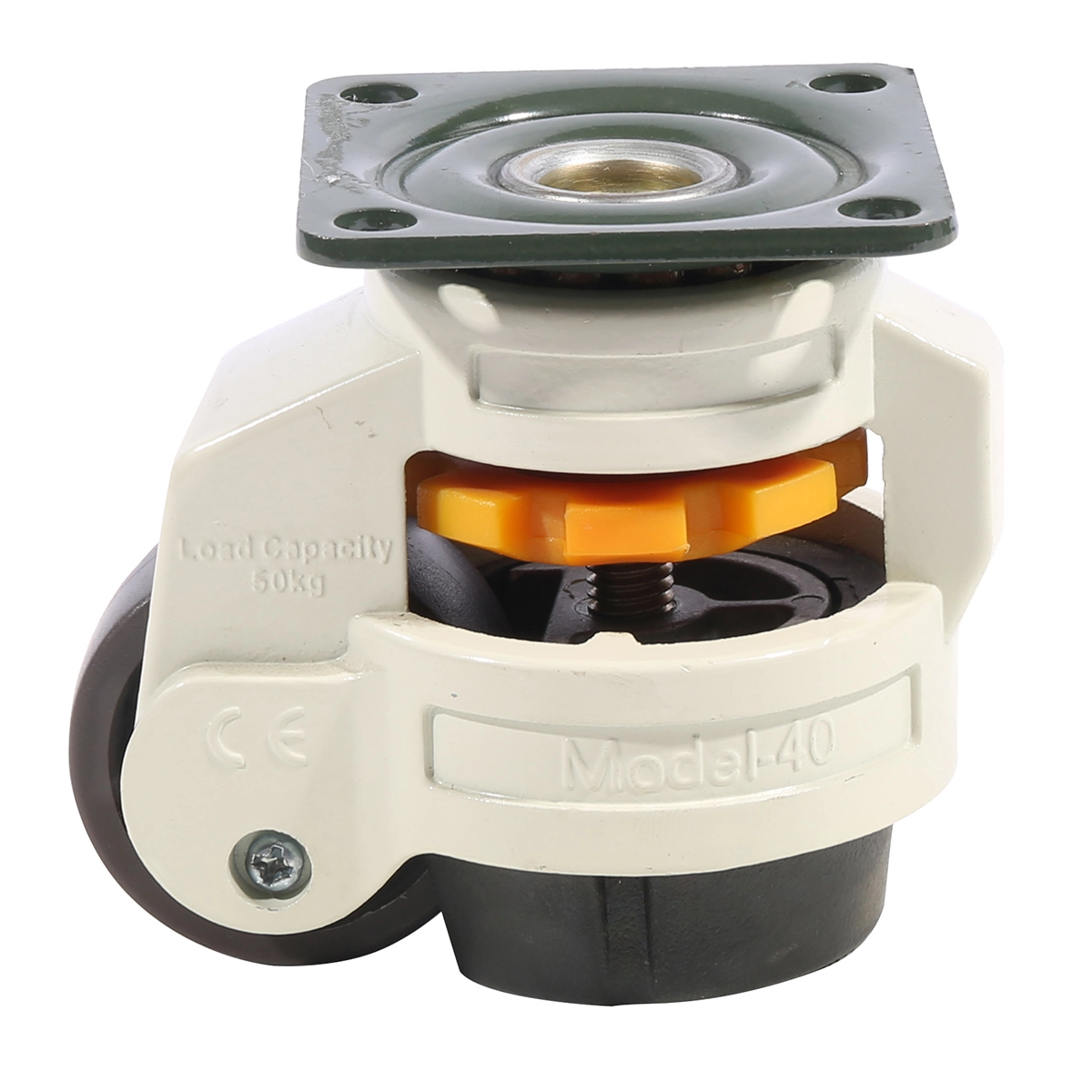

40mm Heavy Duty Footmaster Adjustable Caster Wheels

Product Overview

Our 40mm Heavy Duty Footmaster Adjustable Caster Wheels are built for heavy-duty industrial applications, combining exceptional load capacity with height adjustability to ensure stability on uneven surfaces. Available in wheel sizes from 40mm to 150mm, these casters support loads ranging from 50kg (40mm model) to 1500kg (150mm model)—making them suitable for manufacturing machinery, aviation maintenance equipment, and warehouse storage racks. The integrated footmaster design allows easy height adjustment (75+8mm to 120+12mm) to level equipment, eliminating wobbling and improving safety. Crafted from high-strength materials (steel, aluminum alloy, and nylon), they excel in harsh environments, from construction sites to food processing plants.

Material & Design

Core Materials

Wheel: Nylon (90-95 Shore A) for superior wear resistance and load support. The material resists oils, chemicals, and moisture, making it suitable for food, pharmaceutical, and automotive industries.

Swivel Section: 500L strong steel balls and zinc-plated steel plates, ensuring smooth 360° rotation even under heavy loads (up to 1500kg).

Adjustable Foot: AD12 aluminum alloy for strength and corrosion resistance, with a non-slip rubber pad to enhance stability when the foot is engaged.

Color Options: Black (wheel code 867-0H) and blue (wheel code 867-0L) finishes, matching industrial equipment and workspace aesthetics.

Structural Features

Height Adjustability: Rotate the aluminum foot to adjust height (75+8mm for 40mm wheels, 120+12mm for 100-150mm wheels), leveling equipment on uneven floors (e.g., concrete with cracks or warehouse ramps).

Heavy-Duty Mounting Plate: Sizes range from 55553mm (40mm model) to 95955mm (150mm model), with hole sizes from 7mm to 13mm, ensuring secure attachment to heavy machinery.

Dual-Function Design: Acts as both a caster (for movement) and a leveler (for stability)—engage the foot to lock the caster in place, no separate levelers needed.

Product Characteristics

Extreme Load Capacity: Supports 50kg to 1500kg, handling heavy equipment like aircraft engines, manufacturing machinery, and large warehouse pallets.

Uneven Floor Adaptability: Height adjustment eliminates wobbling, critical for precision equipment (e.g., lab benches, aviation maintenance tools) that requires stable positioning.

All-Industry Durability: Steel, aluminum alloy, and nylon resist impact, corrosion, and wear, making it suitable for construction sites, food processing plants, and medical facilities.

Quiet & Smooth Movement: Precision steel ball bearings ensure quiet, smooth rotation, reducing noise in busy environments (e.g., retail stores with movable shelving or hospital corridors).

Wheel		Wheel
Color : Black		Color :  blue
Hardness : 90-95 Shore A		Hardness : 90-95 Shore A
Wheel core : PA+fiber		Wheel core : PA+fiber
Wheel tread : PA+fiber		Wheel tread : PA+fiber
Wheel code : 867-0H		Wheel code : 867-0L

FAQ

Q1: Can these casters be used in food processing plants?

A1: Yes. The nylon wheel and aluminum foot are non-toxic, non-contaminating, and resist food oils and cleaners—meeting FDA and EU food safety standards. The smooth surface is easy to sanitize, making it ideal for food processing or beverage production lines.

Q2: What’s the maximum height adjustment range?

A2: The range varies by wheel size: 40mm wheels adjust from 75mm to 83mm (75+8mm), 60mm wheels from 85mm to 95mm (85+10mm), and 80-150mm wheels from 110mm to 122mm (110+12mm) or 120mm to 132mm (120+12mm). This covers most uneven industrial floors.

Q3: How do I engage the foot to lock the caster?

A3: Simply rotate the aluminum foot clockwise until it touches the floor—this lifts the wheel slightly and locks the caster in place. To disengage, rotate the foot counterclockwise until the wheel touches the floor, then move the equipment as needed. No tools are required for adjustment.
