Procurement managers, facility engineers, and warehouse operators face a critical choice every time they specify mobility hardware. Choosing the wrong setup directly impacts operator ergonomics, equipment lifespan, and facility safety. The debate isn't just about "turning vs. straight" anymore. It is actually about managing complex load dynamics, minimizing daily push and pull strain, and optimizing equipment for highly specific industrial environments.
Many facilities default to standardized wheels without evaluating the floor conditions or the typical load trajectory. This leads to premature hardware failure and increased worker fatigue. Mastering swivel casters and fixed hardware is rarely about picking a single winner. Instead, it involves engineering the perfect chassis array to support your specific workflows. We will explore how distinct mechanical designs translate into real-world operational success. You will learn exact load calculations, optimal handling placements, and the best ways to blend these components for maximum efficiency.
Swivel casters utilize an offset design and raceway to rotate 360 degrees, offering maximum maneuverability in tight spaces.
Rigid casters (fixed) lack a rotation mechanism, transferring load stress directly to the mounting plate for superior straight-line stability and higher load capacities.
Combining both types is the industry standard; the placement of swivel wheels (front vs. rear) drastically alters steering dynamics.
Safety calculations must always divide the total load by (n-1) wheels to account for uneven flooring scenarios.
Understanding industrial mobility begins with mechanical fundamentals. The core engineering dictates how each wheel interacts with kinetic energy and structural loads. By analyzing these designs, you can easily match the right hardware to your operational demands.

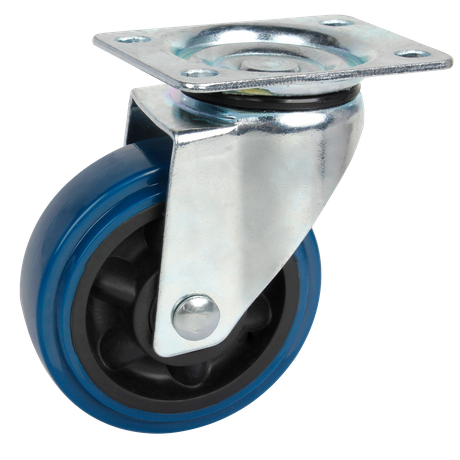

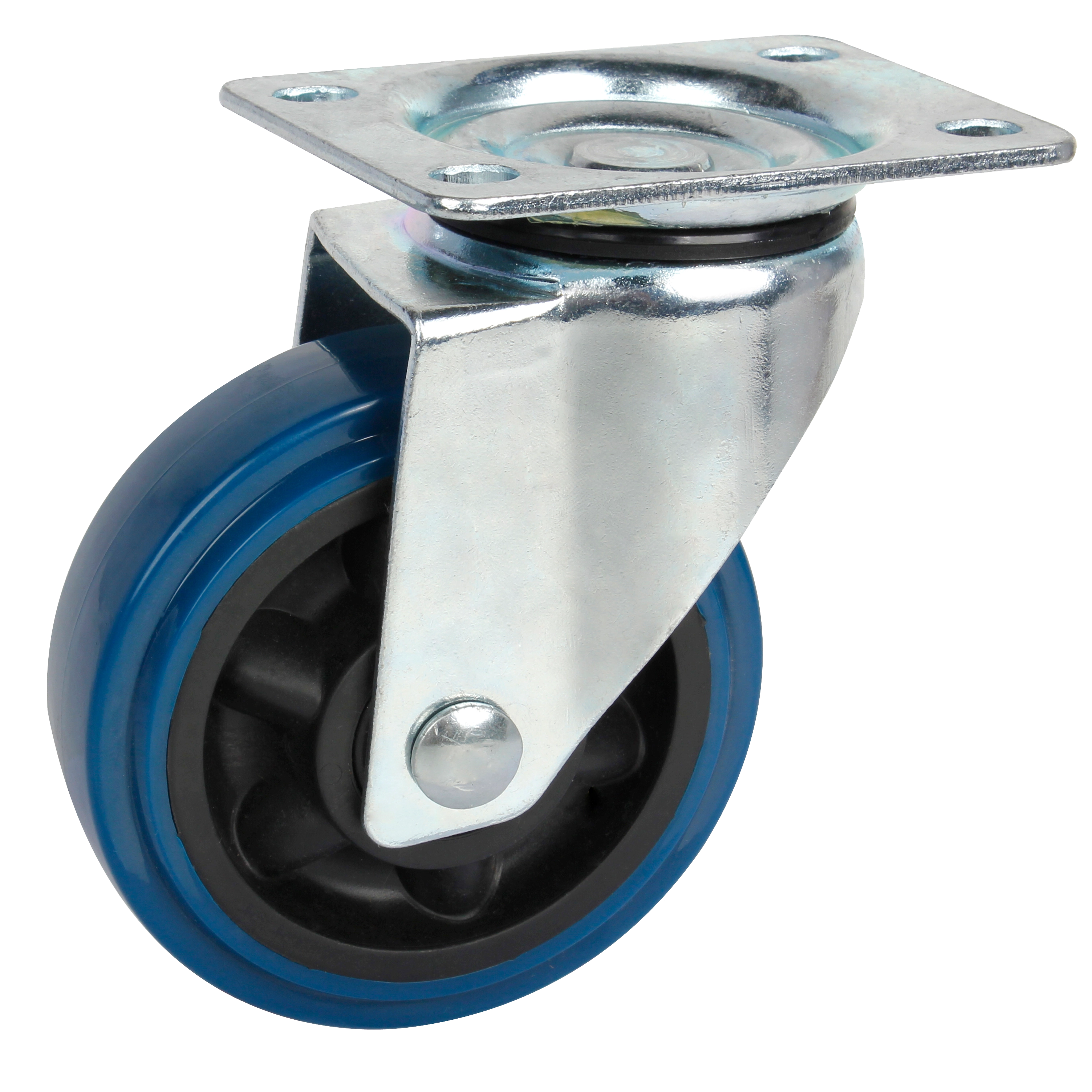

These units allow a wheel to pivot a full 360 degrees. This movement relies entirely on a mechanical concept called the offset. The offset is the exact distance between the wheel axle and the vertical steering axis. It allows the wheel assembly to trail behind the central pivot point. When you push a cart, the offset forces the wheels to align naturally with your direction of travel.
Engineers usually choose between two internal designs for this pivot mechanism. Traditional kingpin designs feature a central bolt holding the raceway together. They are cost-effective and highly functional for standard loads. However, heavy impacts can cause severe sheer stress on this central bolt. For extreme applications, kingpinless designs offer a massive upgrade. They use a massive single row of ball bearings locked into a forged steel ring. This direct connection handles brutal shock loads without fracturing.
You will often hear these referred to as fixed wheels. They use a stationary fork or rig. They only permit forward and backward movement. Because they do not need to rotate on a vertical axis, their engineering is much simpler.
They completely lack swivel raceways and rotating bearings. This simplicity translates into rugged durability. Fewer moving parts mean drastically lower failure rates over time. Furthermore, they exhibit zero mechanical "play" at higher speeds. This eliminates the dangerous high-speed wobble known as shimmy. Rigid casters excel when heavy materials must travel straight paths safely and predictably.
Mechanical features directly drive operational outcomes. Facility managers must evaluate durability, ergonomics, and implementation effort. We map these elements below to help you compare their practical capabilities.
Agility defines the swivel advantage. They are absolutely essential for confined spaces. When operators need lateral sideways positioning, rotating wheels provide the required flexibility. They thrive in dynamic environments without fixed operational pathways.
Conversely, fixed forks prevent drifting. They provide essential straight-line tracking. Imagine pushing a heavily loaded cart down a long warehouse corridor. Correcting a drifting cart causes rapid operator fatigue. Fixed forks keep the payload tracking cleanly forward. This tracking reduces the physical effort needed to cover long distances.
Weight distribution highlights a major difference. A fixed fork transfers weight straight down into the wheel axle. Stress moves directly into the four top mounting bolts. The solid metal structure easily absorbs downward force.
Rotating forks manage stress differently. They channel weight through the swivel bearing or the central kingpin. Under dynamic shock loads, this pivot point becomes a vulnerable failure zone. Therefore, fixed units usually boast higher load ratings than rotating units of the exact same size.
Poor hardware choices directly injure operators. The "shopping cart syndrome" happens when managers install four rotating wheels on a heavy cart. Pushing heavy loads on an all-swivel cart requires massive core strength. Operators constantly fight to keep all four wheels aligned.
Fixed wheels enforce a natural trajectory. They track forward automatically. Operators exert much less lateral force to keep the cart straight. This low-effort trajectory drastically cuts down on shoulder and lower back strain.
| Performance Metric | Rotating (Swivel) Units | Fixed (Rigid) Units |
|---|---|---|
| Maneuverability | Excellent for tight turns and lateral movement. | Limited to strictly forward and backward travel. |
| Straight-Line Tracking | Poor. Susceptible to lateral drifting and shimmy. | Superior. Tracks perfectly straight with minimal effort. |
| Shock Absorption | Moderate. The pivot raceway takes the impact. | High. Solid forks transfer shock to the mounting plate. |
| Operator Fatigue | High during long, straight corridor runs. | Low. Natural trajectory reduces push/pull strain. |
Shop-floor teams constantly argue about handle placement. Knowing when to choose swivel vs fixed casters is only half the battle. You must position them correctly to optimize your steering dynamics.
This placement mimics driving a traditional forklift. The pivot point rests at the rear near the operator. The front fixed wheels act as the fulcrum.
This setup works best for precise docking operations. Operators can swing the rear of the cart tightly. It is ideal for maneuvering heavy loads into tight parking spaces. The tight turning radius excels in crowded aisles. However, pushing this setup in a straight line for long distances requires continuous small steering corrections.
This configuration acts like a standard grocery shopping cart. The operator steers from the fixed end. The front wheels pivot to follow the directional push.
It remains the best choice for pushing loads over long distances. It also offers a distinct physical advantage. The operator can easily push down on the handle. This leverages the rear fixed wheels, lifting the front rotators over thresholds, gaps, or floor obstacles. Tracking is far more stable than the rear-steer method.
Many novice designers put rotating units on all four corners. They assume this maximizes flexibility. While it allows for "crabbing" or moving perfectly sideways, it introduces severe risks. It becomes exceptionally difficult to steer straight under heavy loads. The cart tends to wander along sloped floors. Workers must use their back and arm muscles continuously to maintain a straight course. We heavily advise against this setup for payloads over 500 pounds.
Engineers solve material handling challenges through clever chassis design. The right caster wheel configuration acts as a true suspension system. Here are the three most proven setups for heavy environments.
4-Wheel Caster Steer (2 Rigid Rear, 2 Swivel Front/Back): This remains the most common and balanced choice for industrial cart casters. Most designers place the fixed wheels at the rear near the handle. It offers highly predictable turning and reliable tracking. It bridges the gap between straight-line speed and tight-corner agility.
4-Wheel Diamond Pattern: This design features four fixed forks. Engineers mount them in a diamond shape. They place the center two wheels slightly larger or lower than the front and back wheels. The cart balances on the center axle. It allows for a true 360-degree pivot exactly on the center axis. You get massive rotation capability without using weak pivot mechanisms. The caveat is that you cannot move sideways. Additionally, only three wheels touch the ground at any single moment.
6-Wheel Tilt Configuration: Facilities use this for extra-long carts. The center utilizes two large fixed wheels. The four corners utilize slightly smaller rotating wheels. The cart tilts minutely on the center wheels. It supports massive loads while allowing surprisingly tight-radius turns. It is a staple in large distribution centers and lumber yards.
Treating mobility hardware as generic commodities leads to rapid failure. You must frame your procurement around real environmental variables. Use this structured approach to shortlist and buy the right components.
Before checking weight limits, you must audit the physical floor plan. Your hardware must survive its specific operating space.

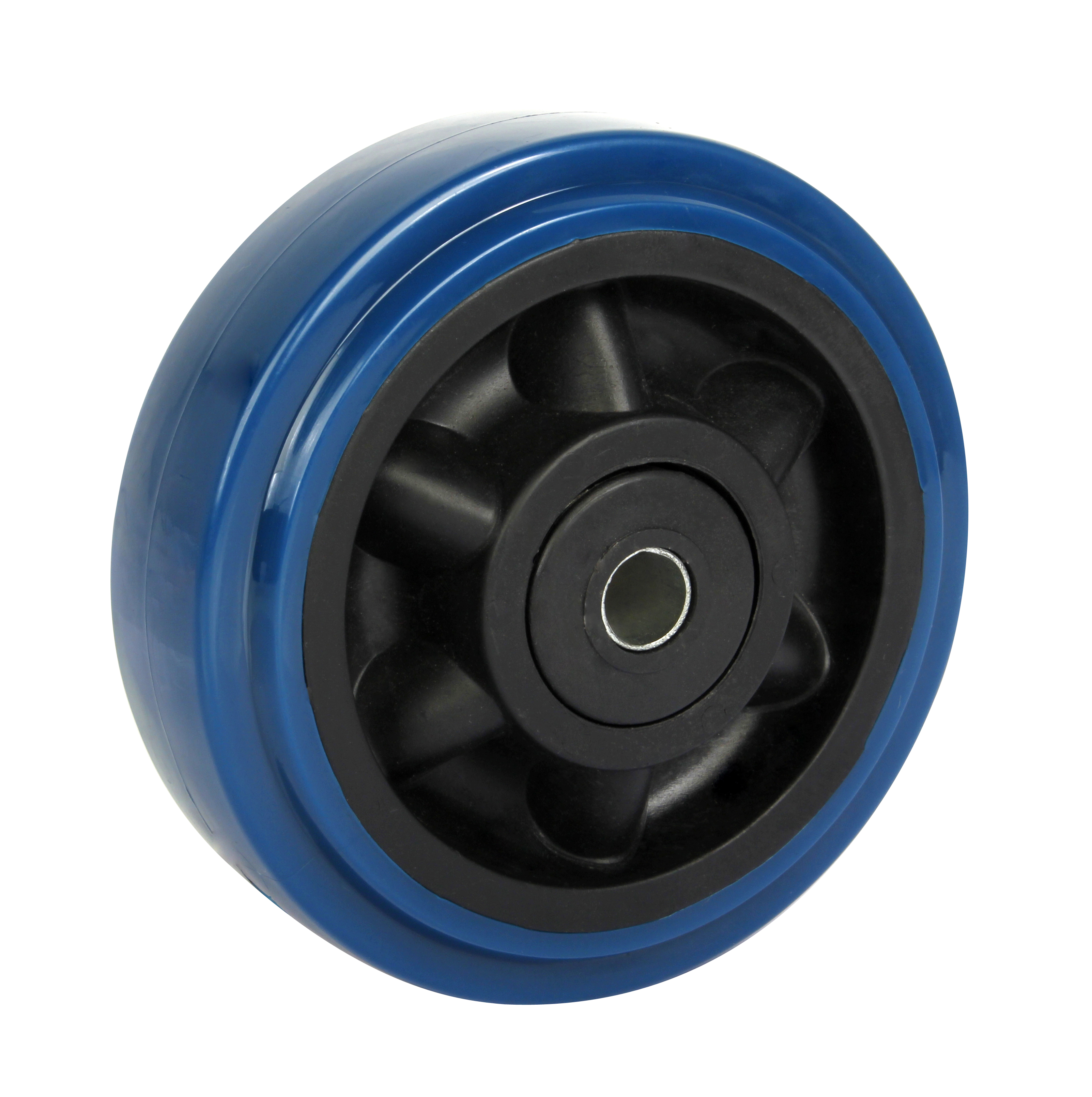

Floor Type: Specify polyurethane treads for smooth concrete. Use forged steel for extreme manufacturing zones. Soft rubber protects delicate tile but struggles under immense weight.
Debris Presence: Metal shavings, zip ties, and shrink wrap destroy unprotected bearings. Specify thread guards and sealed bearings if debris is common.
Corridor Width: Narrow aisles demand tighter turn radiuses. This often pushes designers toward rear-steer setups or six-wheel tilt arrays.
Chemical Exposure: Standard zinc plating corrodes in washdown environments. You must use stainless steel hardware in food processing and medical spaces.
Never divide the total weight simply by the number of wheels. Industrial floors are rarely perfectly flat. A cart frequently hits small dips, leaving one wheel suspended in the air. The remaining wheels suddenly bear the entire load.
You must use the industry-standard safety formula: Target Capacity per Caster = (Weight of Cart + Maximum Load) / (Total Wheels - 1). Subtracting one accounts for the realistic three-point suspension scenario.
| Variable | Value |
|---|---|
| Empty Cart Weight | 200 lbs |
| Maximum Payload | 1,000 lbs |
| Total Gross Weight | 1,200 lbs |
| Wheel Divisor (4 wheels - 1) | 3 |
| Minimum Required Rating | 400 lbs per wheel |
You can often get the best of both worlds by upgrading your hardware accessories. If your operators need sideways mobility occasionally but straight-line speed frequently, consider specialized locks.
You can equip rotating forks with four-position swivel locks. A quick pull of a pin locks the fork into a rigid forward position. You transform a rotating unit into a fixed unit on demand. Additionally, prioritize total-lock brake caster wheels. A standard brake only stops the wheel from rolling. A total-lock mechanism stops both the wheel tread and the upper pivot raceway. This guarantees maximum stability during heavy loading and unloading procedures.
Navigating the complex mechanics of industrial hardware ensures your operations run smoothly and safely. Rotating units provide crucial agility in tight spaces. Fixed hardware delivers unmatched stability and heavy-duty reliability. You must avoid treating these crucial components as cheap commodity hardware. The exact configuration acts as a finely engineered suspension system for your entire facility logistics network.
Start by auditing your current cart fleets. Look closely for signs of operator fatigue, damaged kingpins, or severely wandering chassis. Once you identify these weak points, consult with your engineering teams to spec the correct kingpinless, fixed, or hybrid setups for your next deployment.
A: Yes, this is the industry best practice to balance steering control with straight-line stability. The most common configuration pairs two fixed wheels with two rotating wheels, giving you both maneuverability and predictable forward tracking.
A: Shimmy is usually caused by excessive speed, trailing distance issues, or worn kingpins. Upgrading to heavier kingpinless designs or carefully adjusting the caster trail distance can effectively resolve this high-speed wobble.
A: While most total-lock brakes are on swivel casters (to stop the pivot and the wheel), rigid casters can also be equipped with simple tread or side brakes to prevent rolling. This adds critical safety during stationary loading.
A: Rigid casters lack the raceway and bearing assembly. This allows the structural fork to absorb and distribute mechanical shock directly into the mounting plate without putting stress on a vulnerable vertical pivot point.
